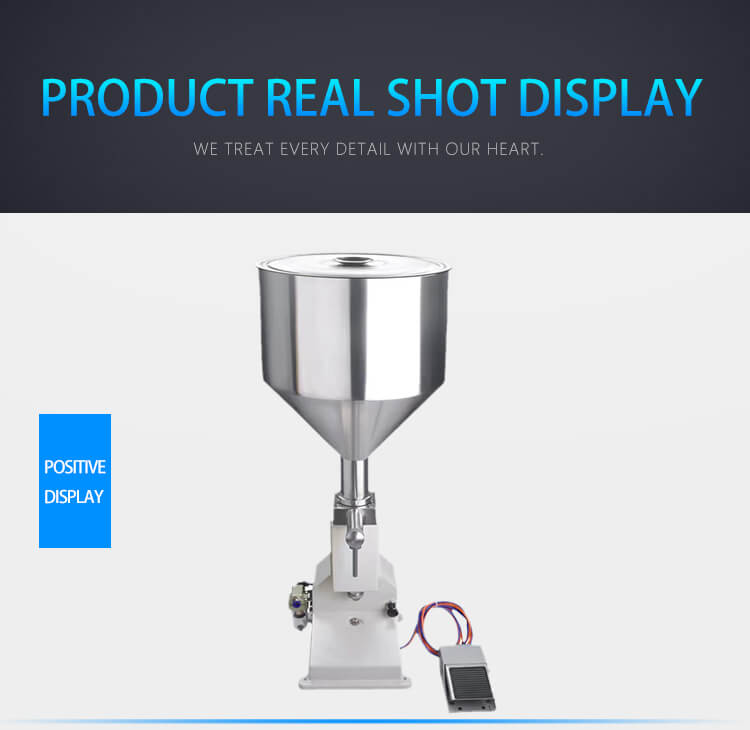

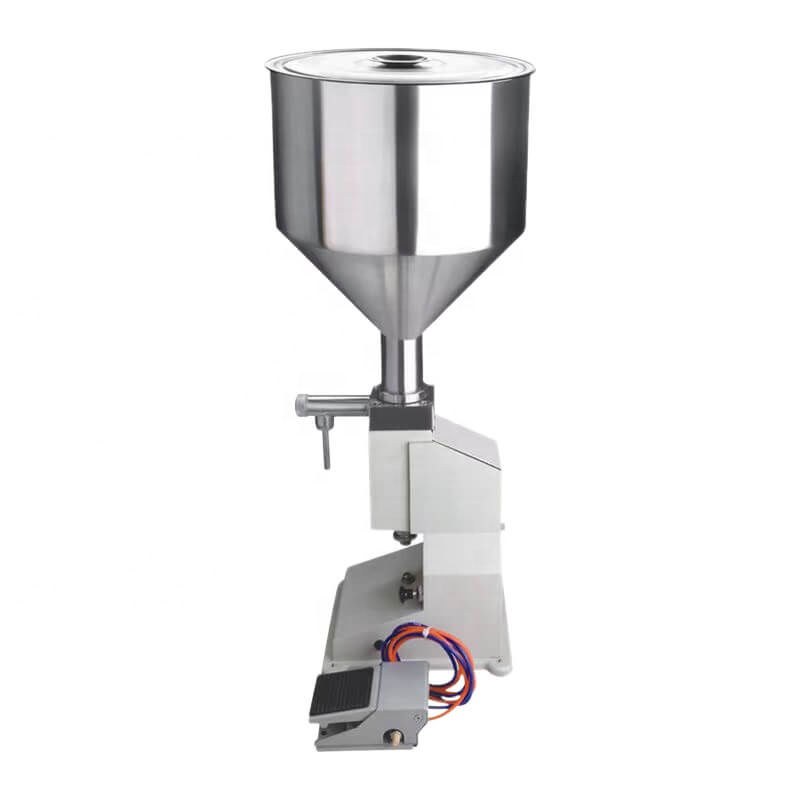

A02 peristaltic pump pneumatic manual oral liquid filling machine

Type: Filling Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware
Packaging Type: Bags, Bottles, CANS, Capsule, Stand-up Pouch, Other
Packaging Material: Metal, Plastic, Paper, Glass, Wood, Other
Automatic Grade: Semi-automatic
Driven Type: Pneumatic
Dimension(L*W*H): 200*220*700MM
Weight: 12 KG
Availability:
Quantity:

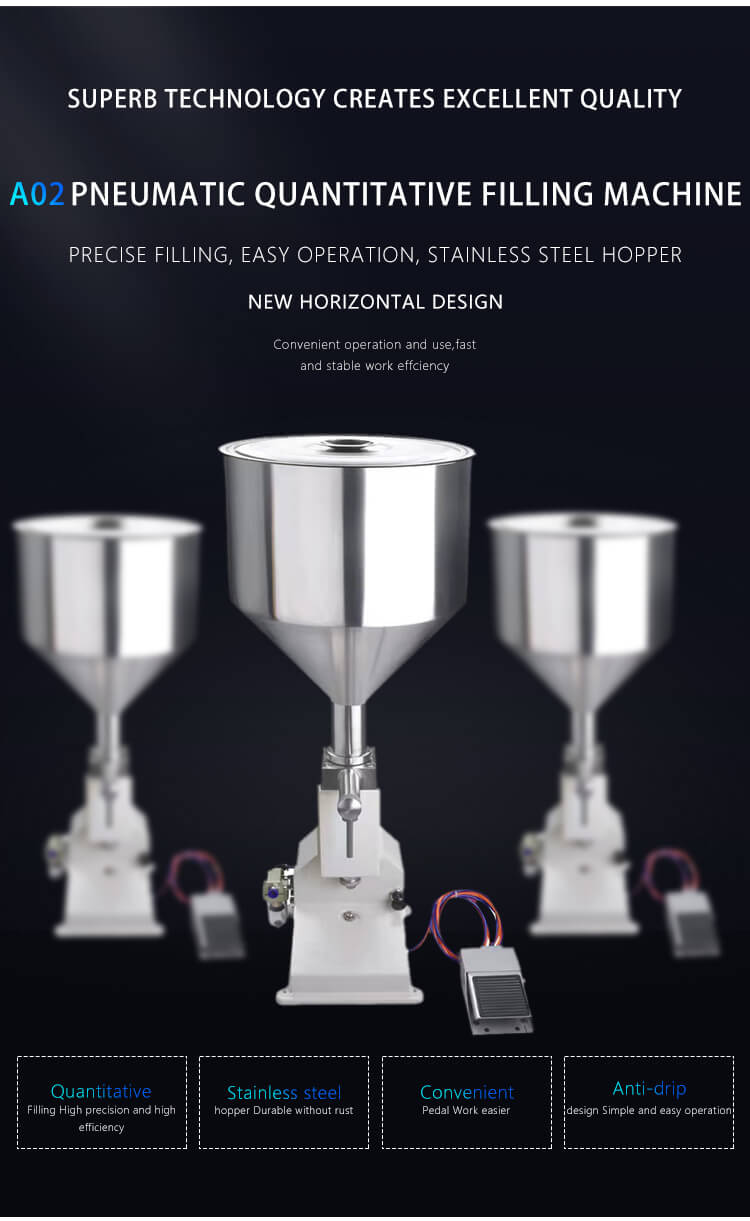

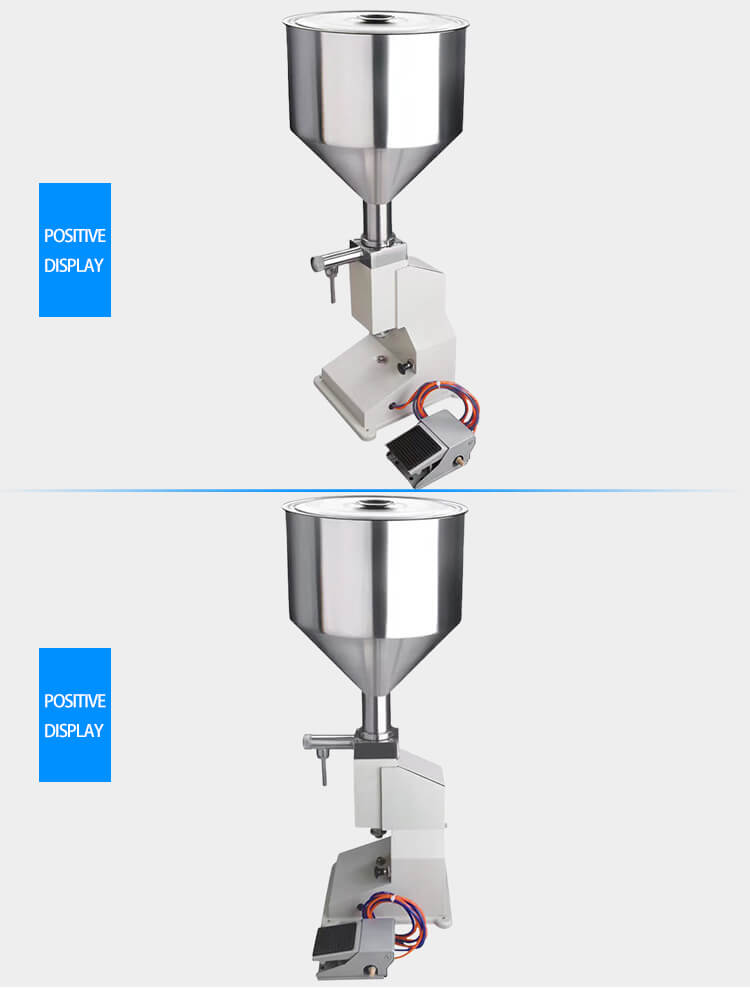

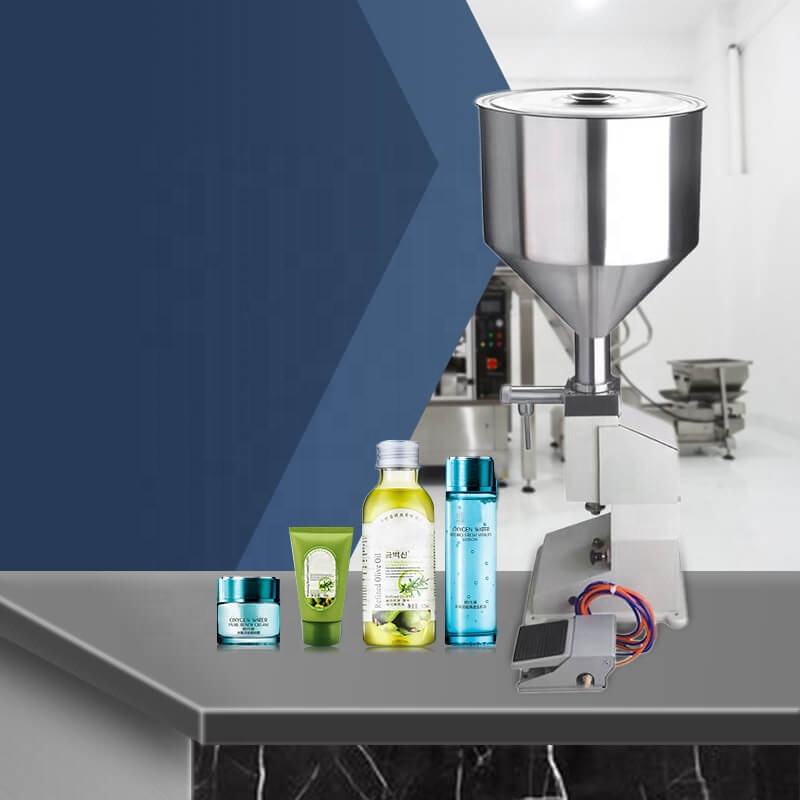

Pneumatic Manual Cream Filling Machinery for Tomato Sauce A02

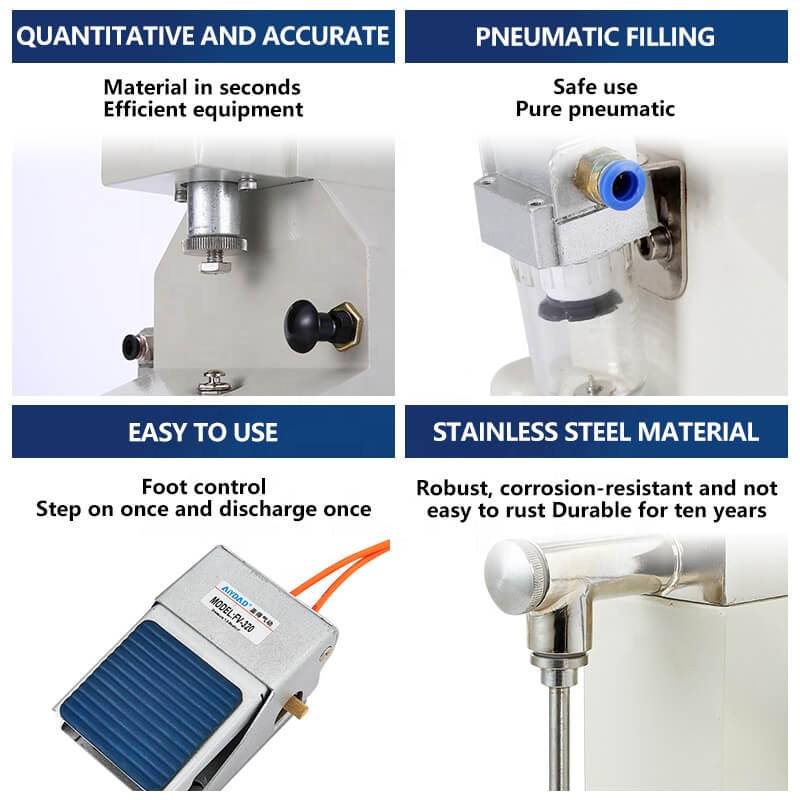

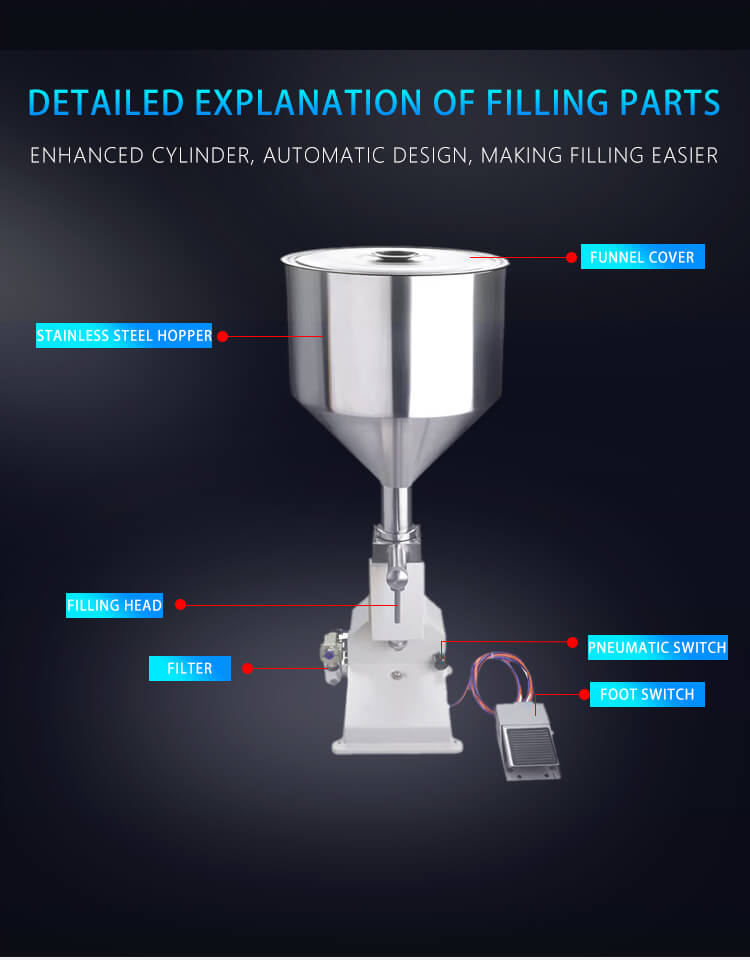

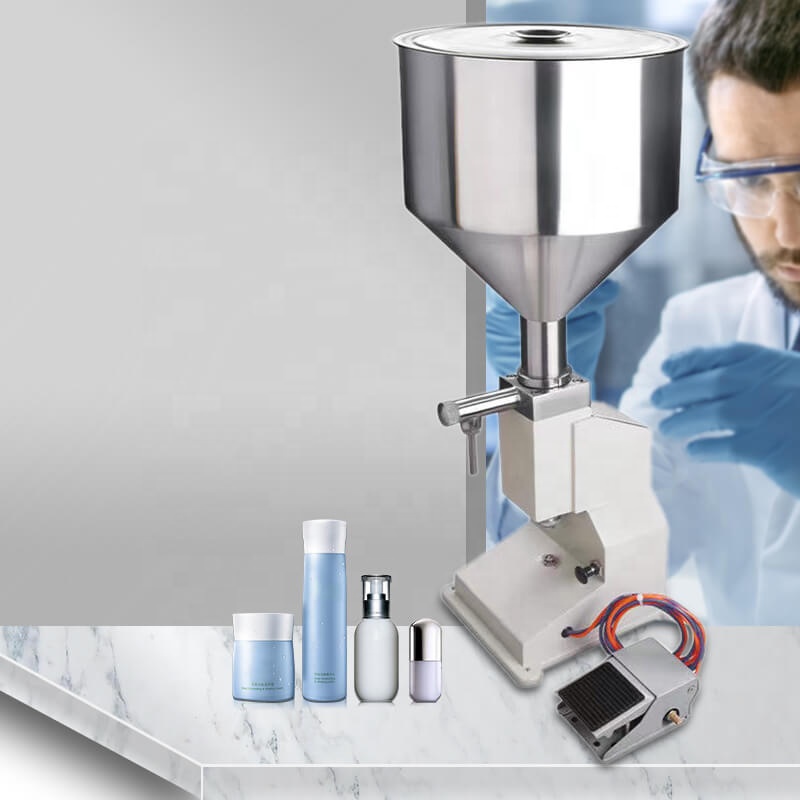

Pneumatic A02 type manual filling machine is based on the manual filling machine A03 to improve, driven by compressed air, with the foot switch and automatic switch, the complete liberation of the user's hands, make the operation more convenient. The product is designed for hospitals, laboratories, beauty salons, small and medium enterprises, such as design, ideal for filling small doses of liquid and paste.





Technological parameter:

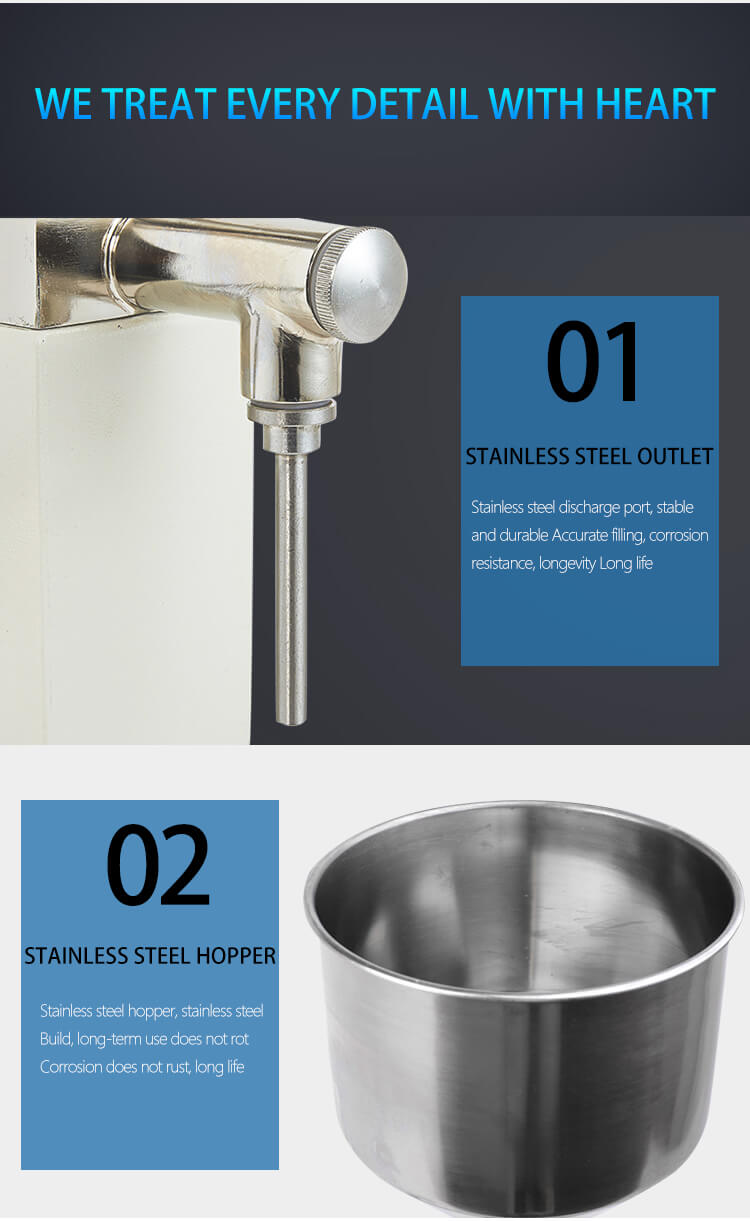

Material of machine:Stainless steel 304

Filling Range:5-50 ml

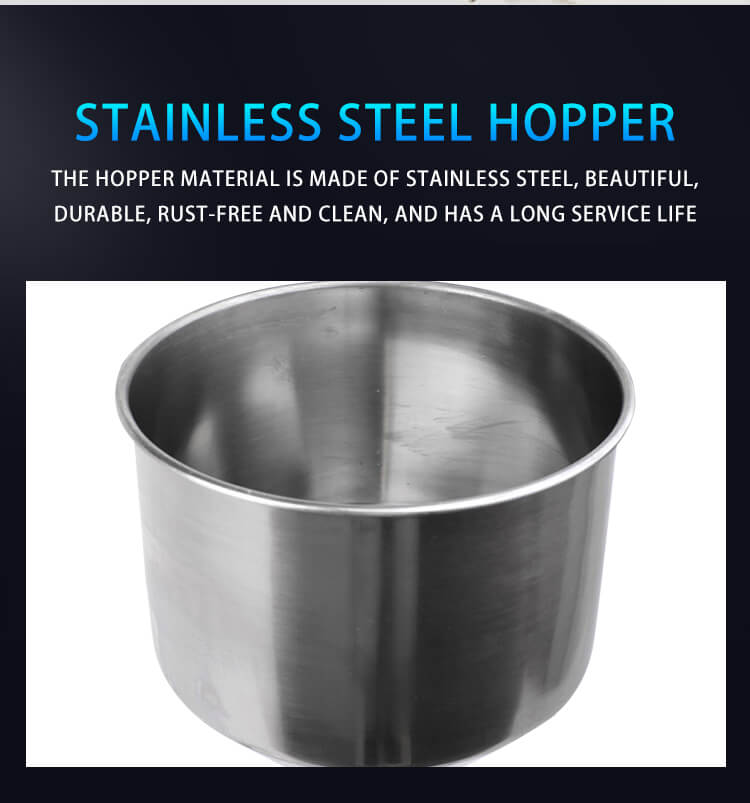

Capacity of Hopper:10 kg

Filling accuracy:

± 0.2-1ml

Filling speed: 20-60times/min (It varies from person to person)

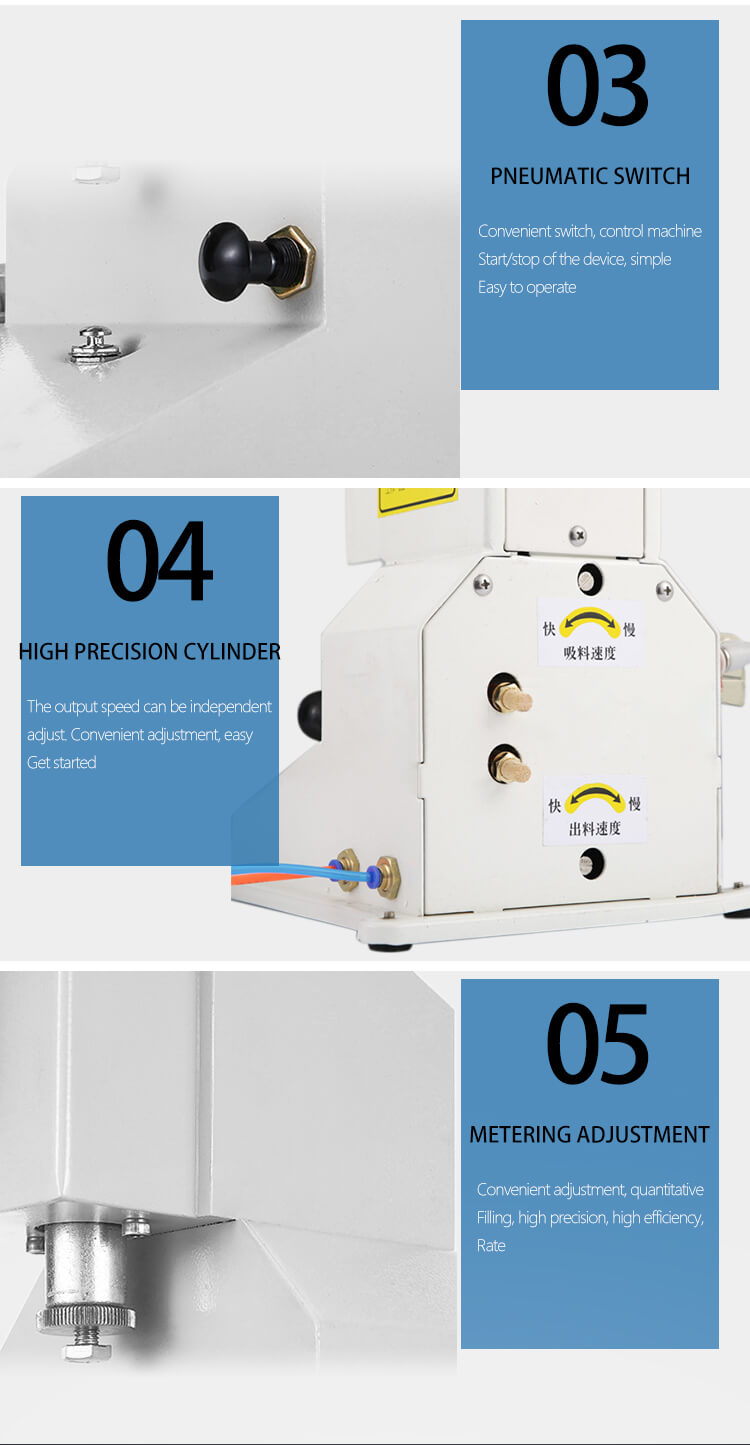

Working pressure:0.4-0.6Mpa

Net weight:18 kg

Gross weight:22 kg

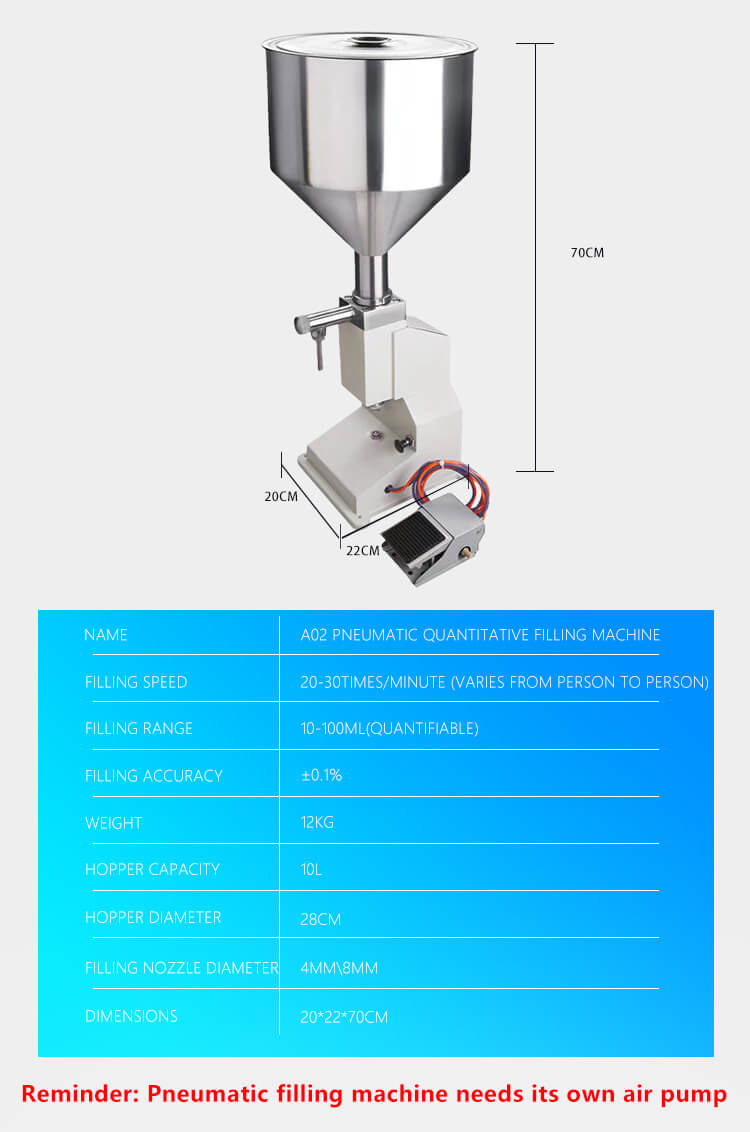

Machine size:270x270x700 mm

Packing size: 340×360×790 mm

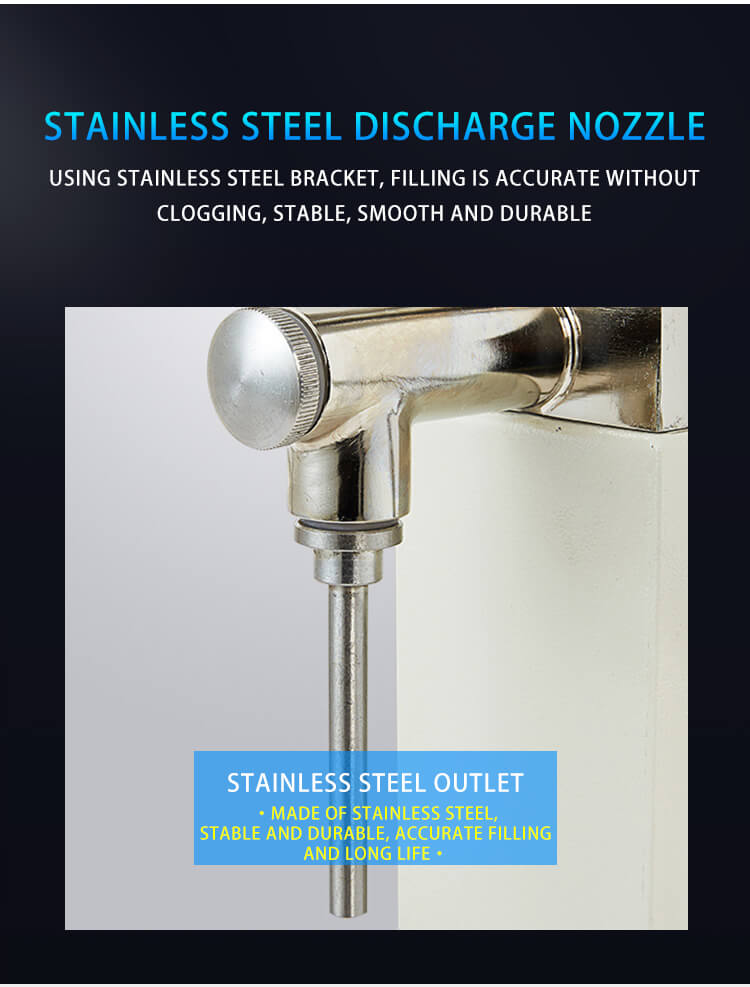

1 Nozzles:2 pcs

2 0-Ring:2 pcs

3 Guide Manual:1 pcs

4 Hexagon:2 pcs

5 Screwdriver :1 pcs

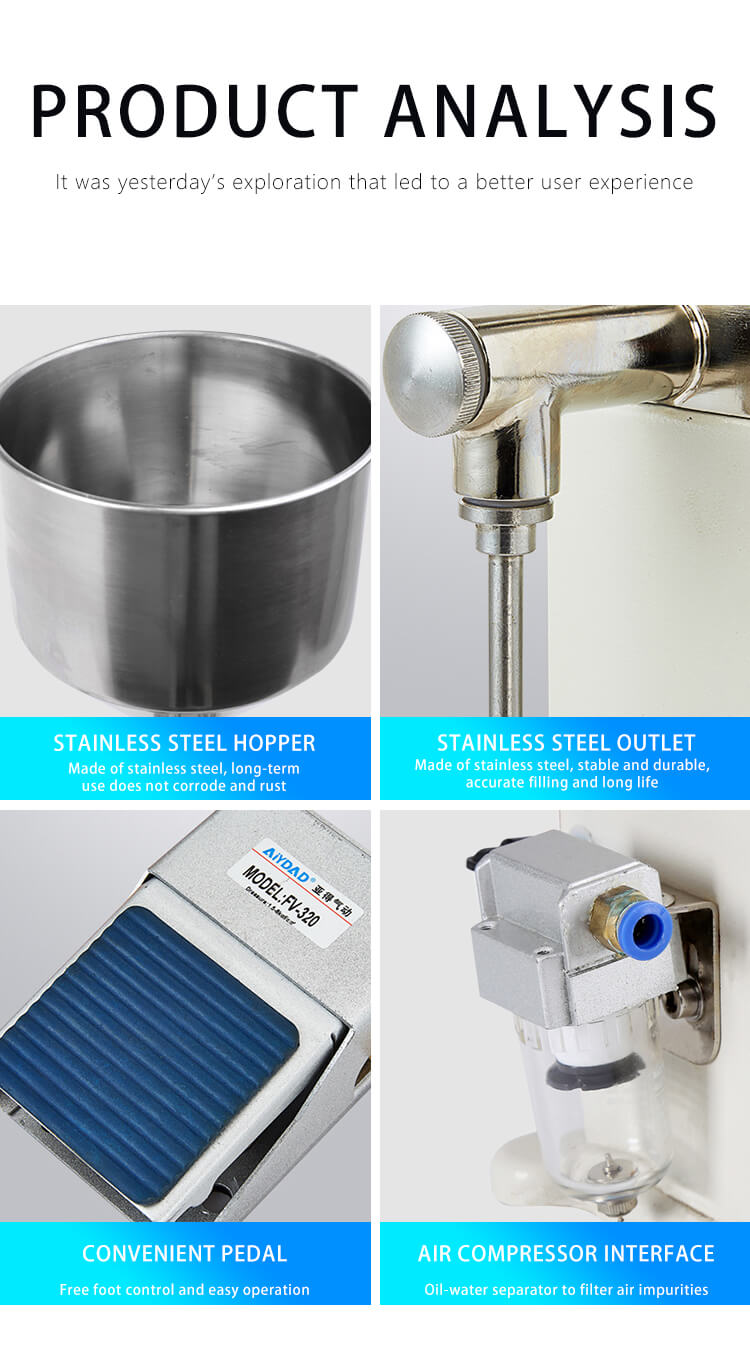

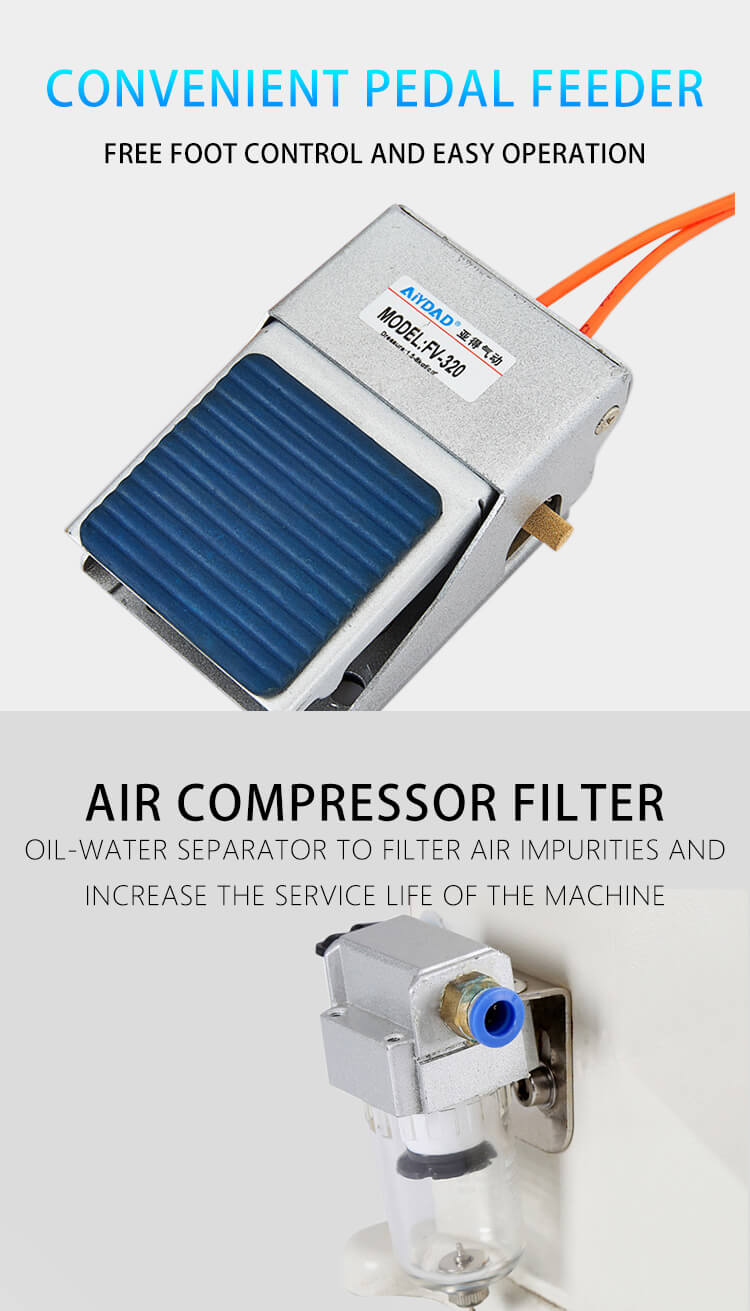

6.Foot pedal: 1pcs


A02-en_02A02-en_03A02-en_04A02-en_05A02-en_06A02-en_07A02-en_08A02-en_09A02-en_10-1A02-en_11A02-en_12A02-en_13A02-en_14
