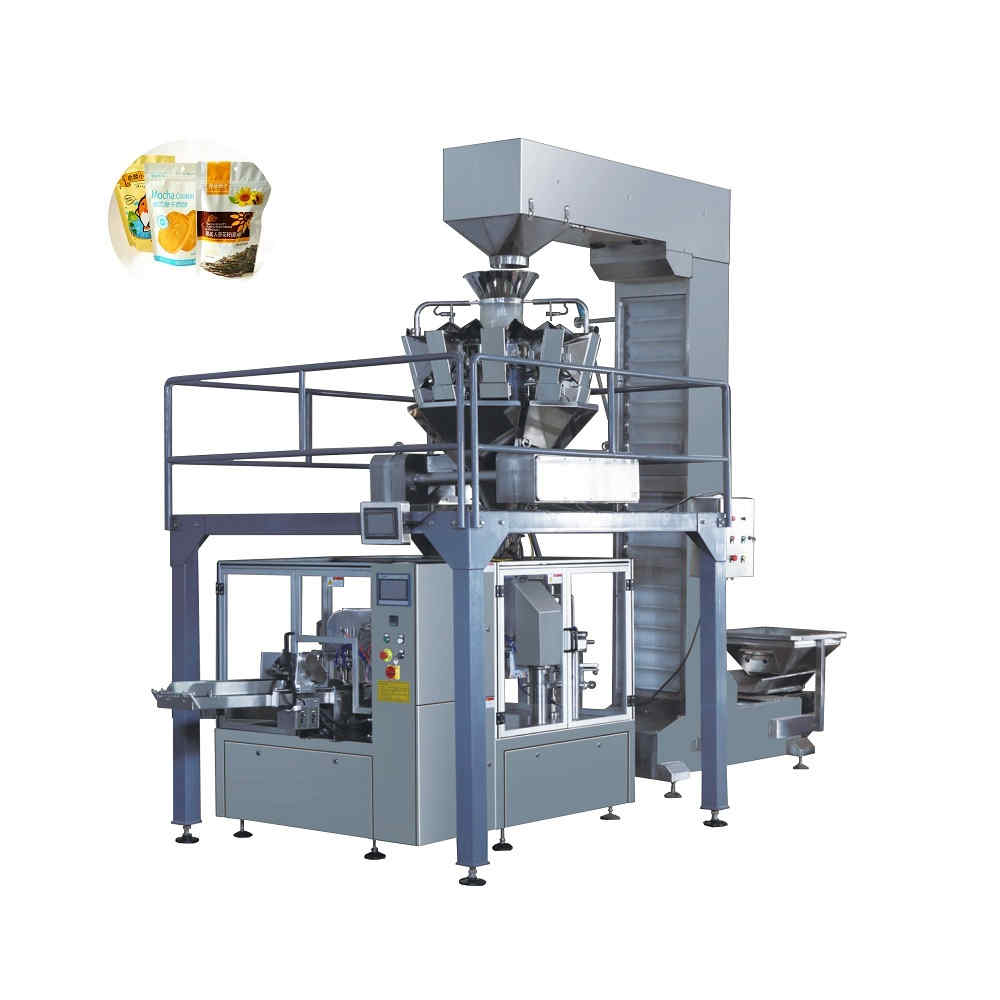

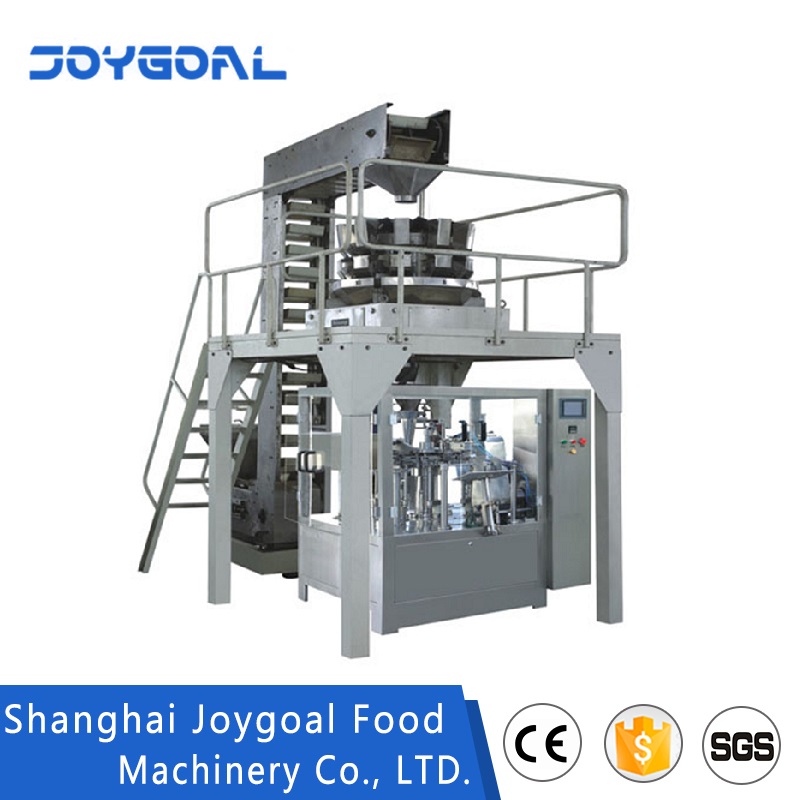

High precision stand up pouch weighting filling sealing packing machine for nuts
Automatic stand up pouch filling and sealing machine, stand up pouch packing machine
Pls feel free contact us, we can provide pictures and video to you. We are factory and manufacture in Shanghai, we can provide competive price and high quality machine, good after-sale service.
What is the details of our Pre-made stand up pouch filling sealing machine for liquid semi-liquid powder and granule ?
This machine is suitable for pre-made pouch stand up pouch filling and sealing with type of pouches for liquid, granule, paster and powder:
1. Solid Species: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, etc.
2. Granule Species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, etc.
3. Powder species: spices, monosodium glutamate, salt, glucose.
4. Liquid Species: rice wine, soy sauce, rice vinegar, etc.
5. Thick liquid Species: tomato sauce, etc.
Liquid stand up pouch filling and sealing machine ,stand up pouch packing machine ,suitable for liquid or semi liquid filling and sealing.Such as water, laundry detergent, fruit juice, tomato sauce,or other sauce.
This machine include :
1. One set GD-8-200 stand up pouch packing machine, eight-station.
2. One set paste filling machine, this machine can fill liquid and semi-liquid.can fill 50-2000ml.pneumatic control.
Powder stand up pouch filling and sealing machine,stand up pouch packing machine,suitable for powder filling and sealing. Such as coffee powder, salt, milk powder, coco powder, medicament,flour,and other type powder.
This machine include :
1. One set GD-8-200 stand up pouch packing machine, eight-station.
2. One set auger Filler (For Powder Packaging) , suitable for packing pharmacy, milk, flour, spice, ground coffee, cocoa powder & non-food powder products as cosmetic, chemical etc.
this auger filler is with vertical screw filling device, high filling accurate, from 10-1000g,easy to adjust filling volume.
3. One set powder conveyor screw machine, it can aitomtiac transport the powder into the tank of powder filling machine, it is very convenient and high-efficiency
Auger filler for powder packaging

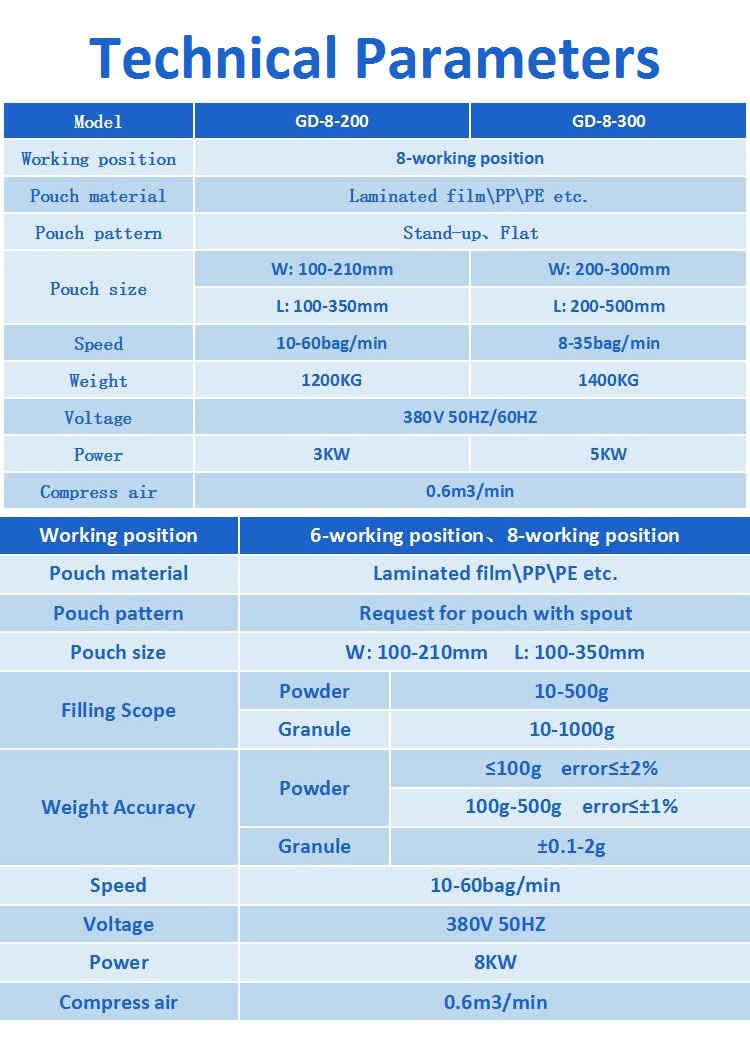

Working Position | Eight-working position |
Pouch material | Laminated film |
Pouch pattern | Request for pouch with spout: 1) the spout must be parallel to the edge of the pouch; 2) the open part must be 12-15mm higher than the spout; 3) the width of the opening can not be less than 60mm.(not including the sealing edge and the spout) |
Pouch size | W:100-210mm L:100-350mm |
Filling scope | Powder | 100-1000g (can be adjusted) |
Weight Accuracy | Powder | Package weight ≤ 100g, with an error≤±2% 100-500g, with an error≤±1% |
Speed | 10-60 pouches/min (The speed depends on the product status and filling weight) |
Power source | 380V 3phase 50HZ |
Total power | 5 KW |
Compress air | 0.6m3/min |

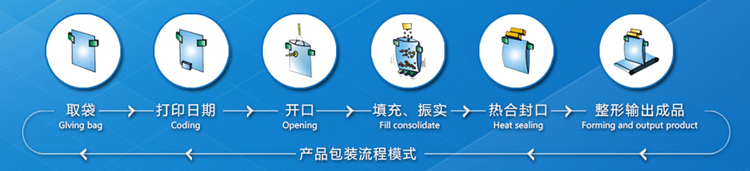

1. Giving bags
2. Date printing
3. Open bags 1st
4. Open bags 2nd (Integrity open the bottom of bag)
5. Filling & Vibrate (Check 1: No bag or bag open error, no filling)
6. Sealing 1st (Or instead of Filling 2nd)
7. Sealing 2nd (Check 2: No bag, no sealing. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm)

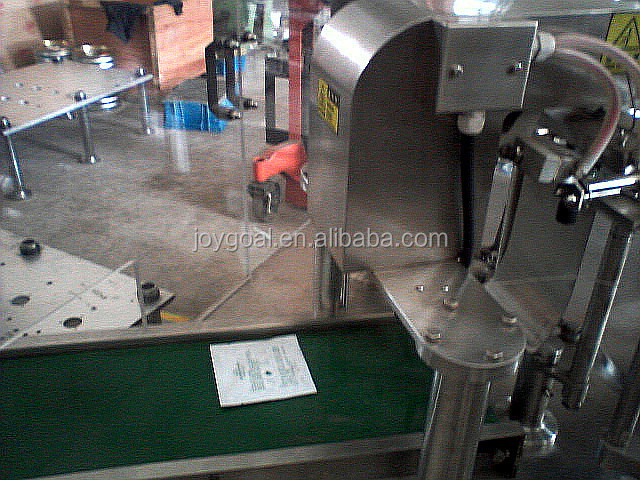

8. Forming & Output Product
Samples
