We also have automatic vertical packing machine for liquid, paste, powder and granule
What are the details of our JOYGOAL Automatic triangle bag packing machine?
Adopt an advanced microcomputer controller and step-by-step motor to drive and control the length of the bag with stable performance and accurate testing. Meanwhile, it is easy to operate.
The machine has functions including bag-making, weighing, filling, sealing, cutting, counting, printing batch number, and so on.
The packing shape is a unique triangle, pretty and fashionable.
The machine is suitable for the triangle bag solid packing of grain, powder, liquid, short strip, and slices, such as slices puffed food, shrimp strip, peanut, popcorn, oatmeal, melon seeds, flavoring and so on.
What are the technical parameters of our JOYGOAL Automatic triangle bag packing machine?
Name | Automatic triangle bag packing machine |
Model | GT-3G |
Bag Size | L:40-100 (mm) W:40-90(mm) |
Packing Speed | 30-60 bag/min |
Bag Cubage | 5-120 ML |
Power | 220V/50HZ/1.5KW |
Air Source | 5-7Mpa |
Air Consumption | 0.25C/min |
Machine Weight | 400KG |
Outline Dimension | 900mm×700mm×1700mm |
1: The parameter above is only for reference, please make the object as the standard.
2: This is our smallest machine, according to your requirements, we can provide special design.

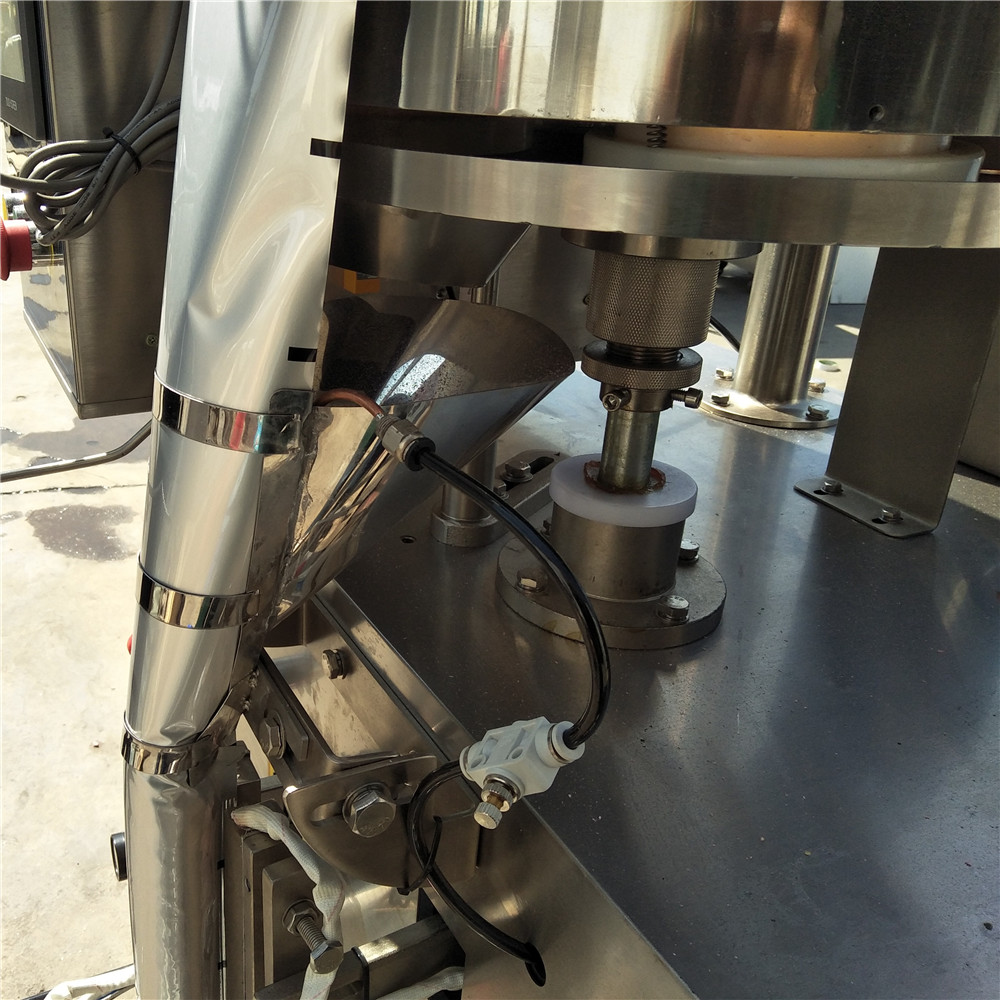

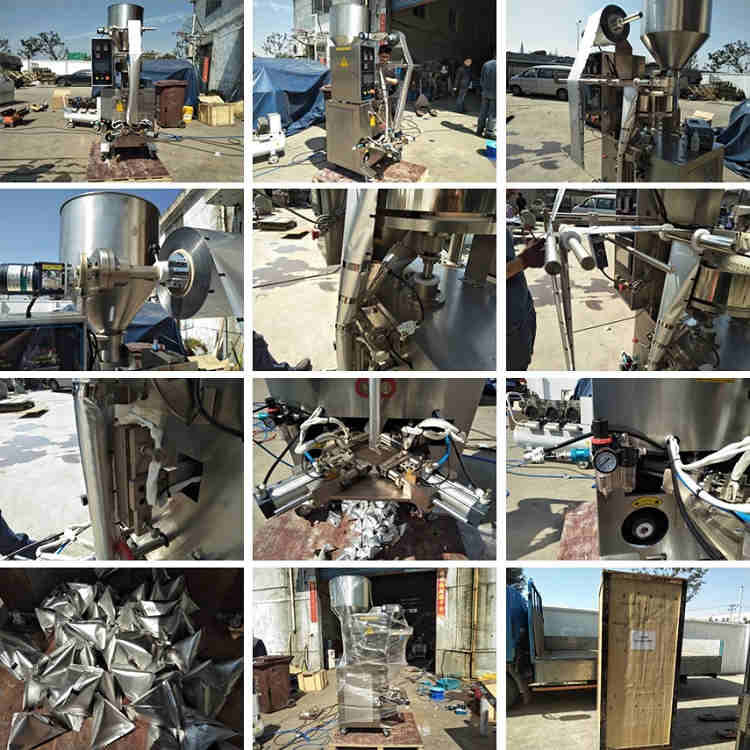

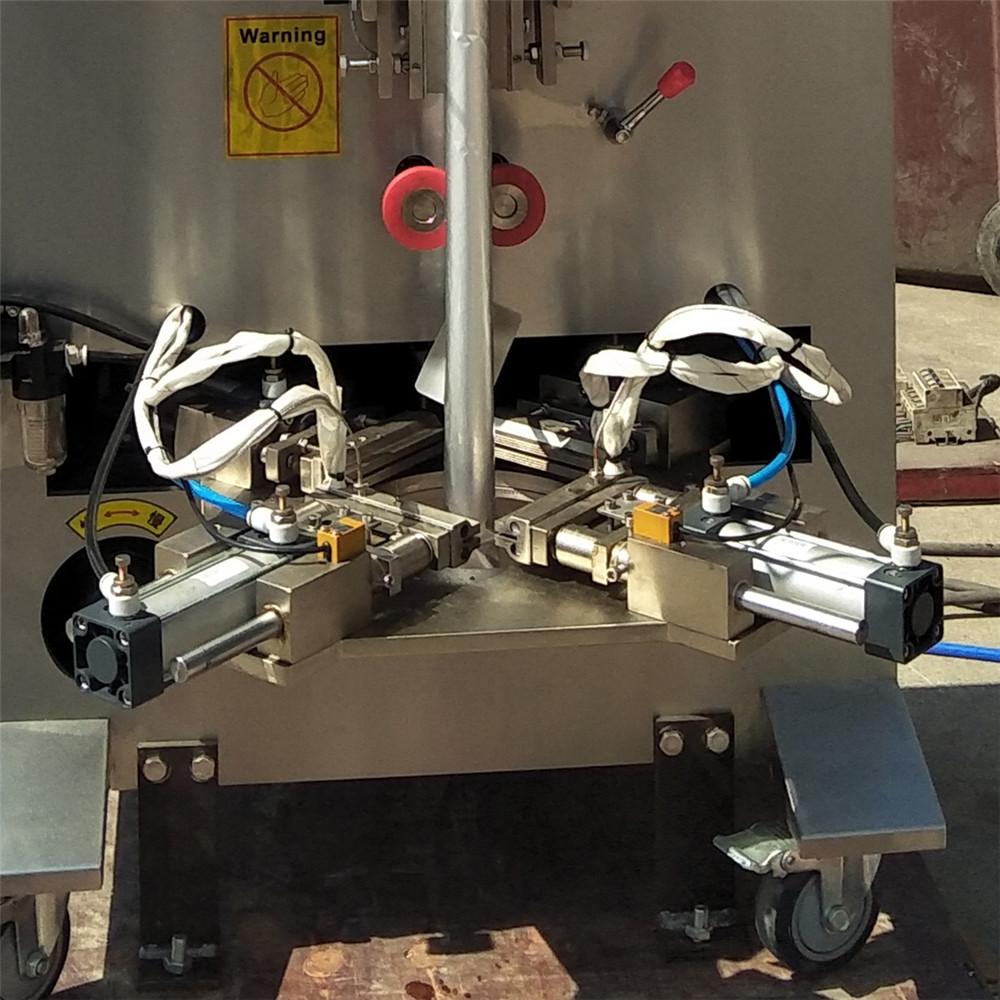

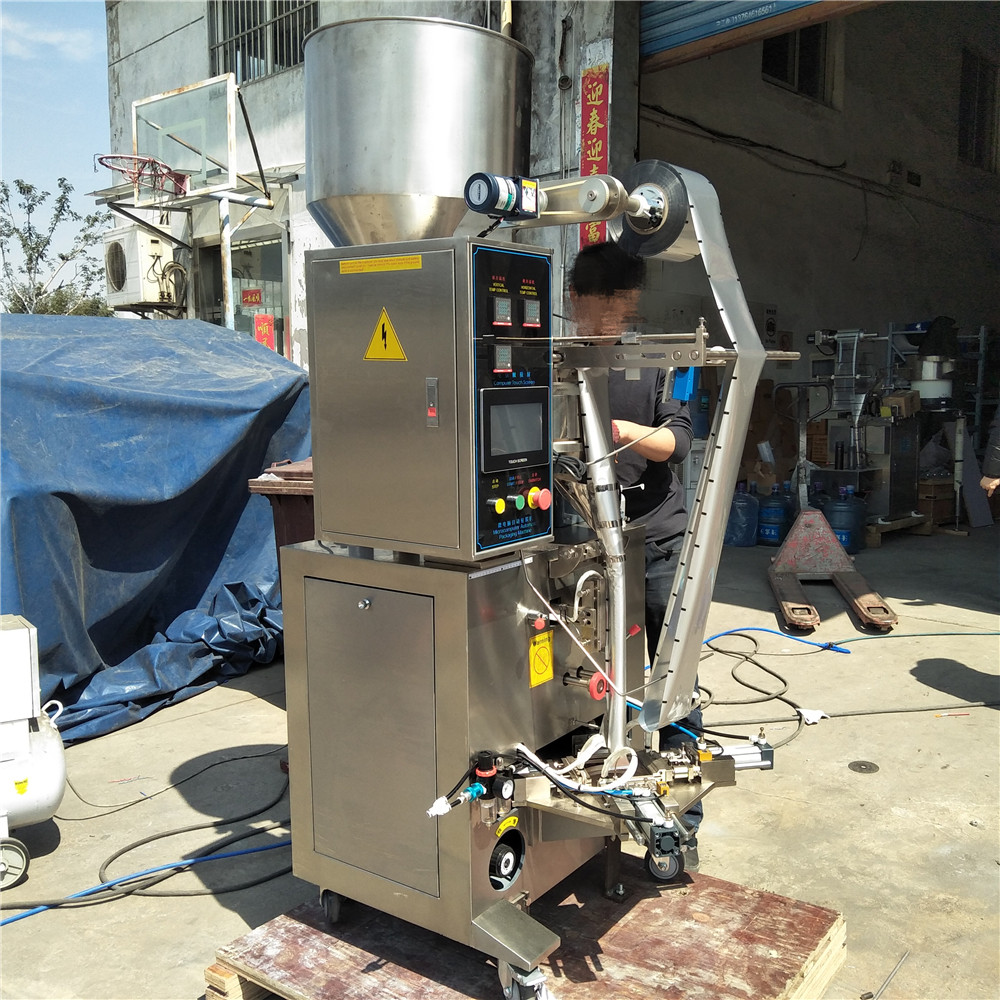

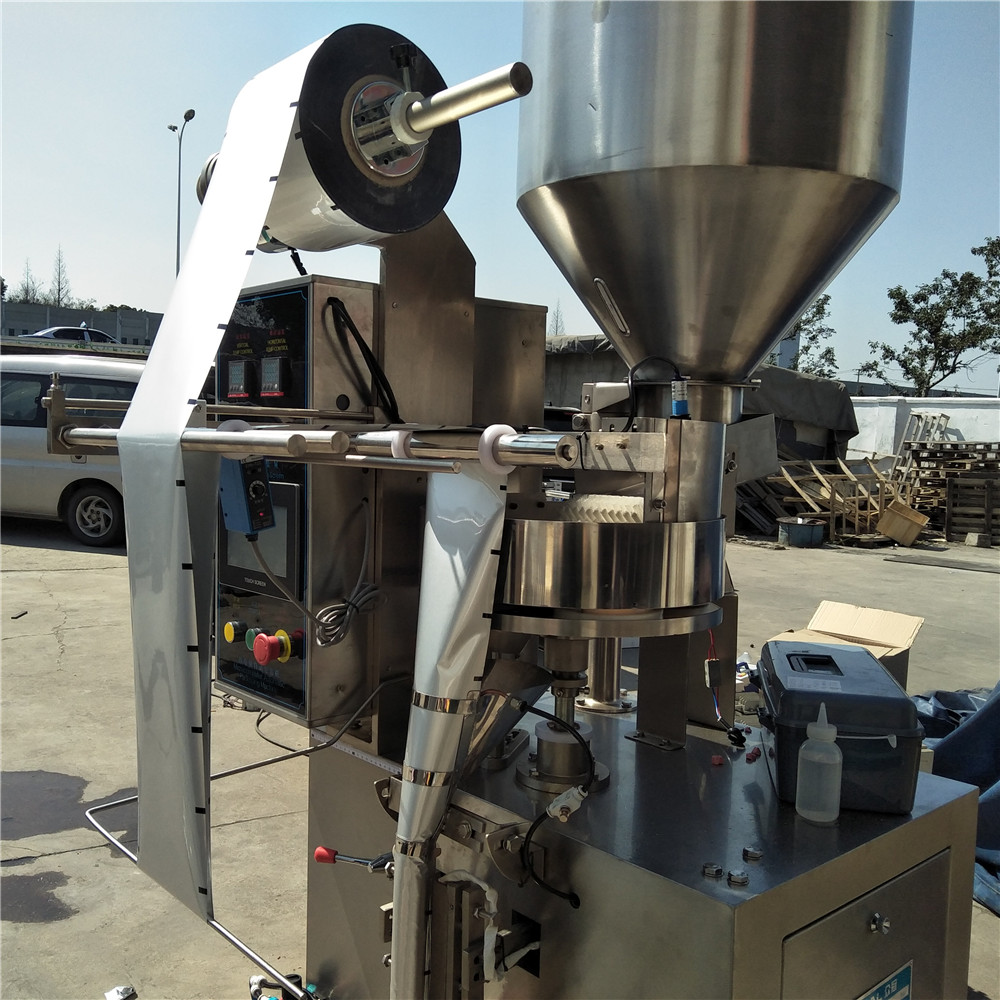

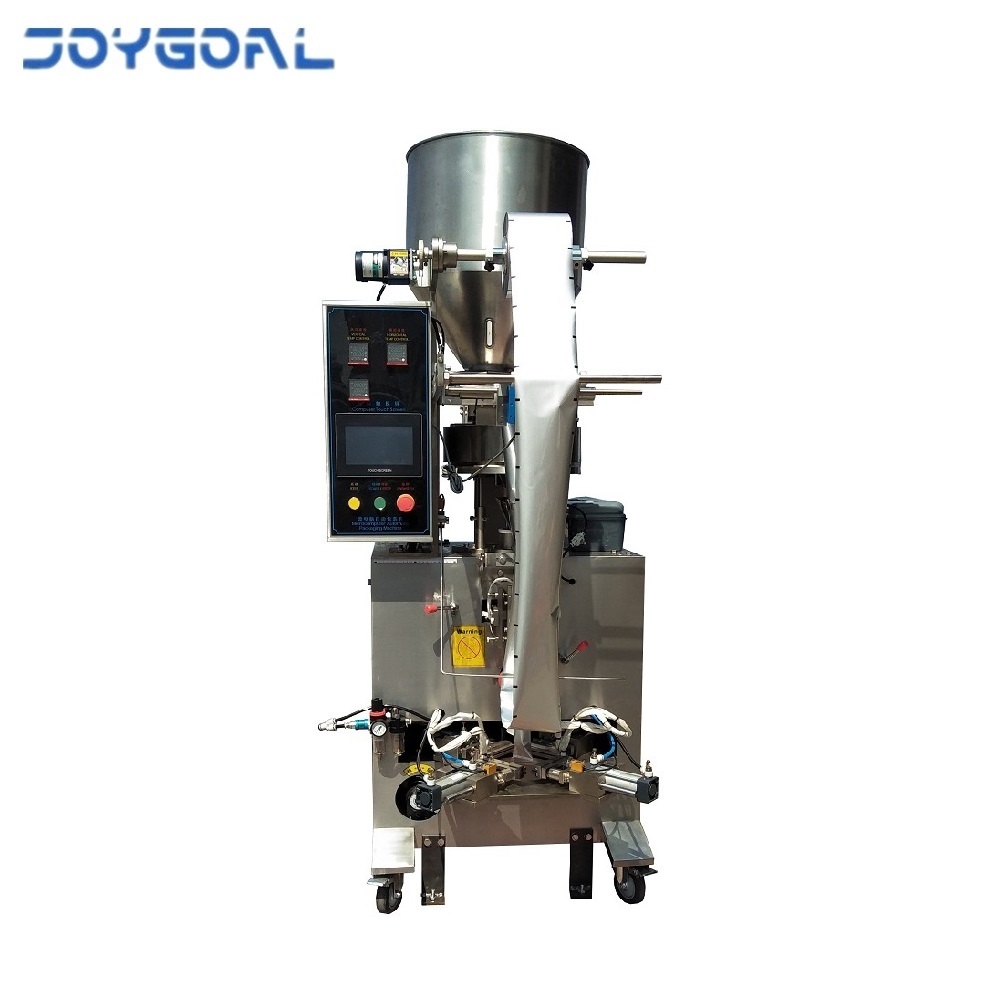

What are the appearances of JOYGOAL Automatic triangle bag packing machine?
What are the samples of JOYGOAL Automatic triangle bag packing machine?
