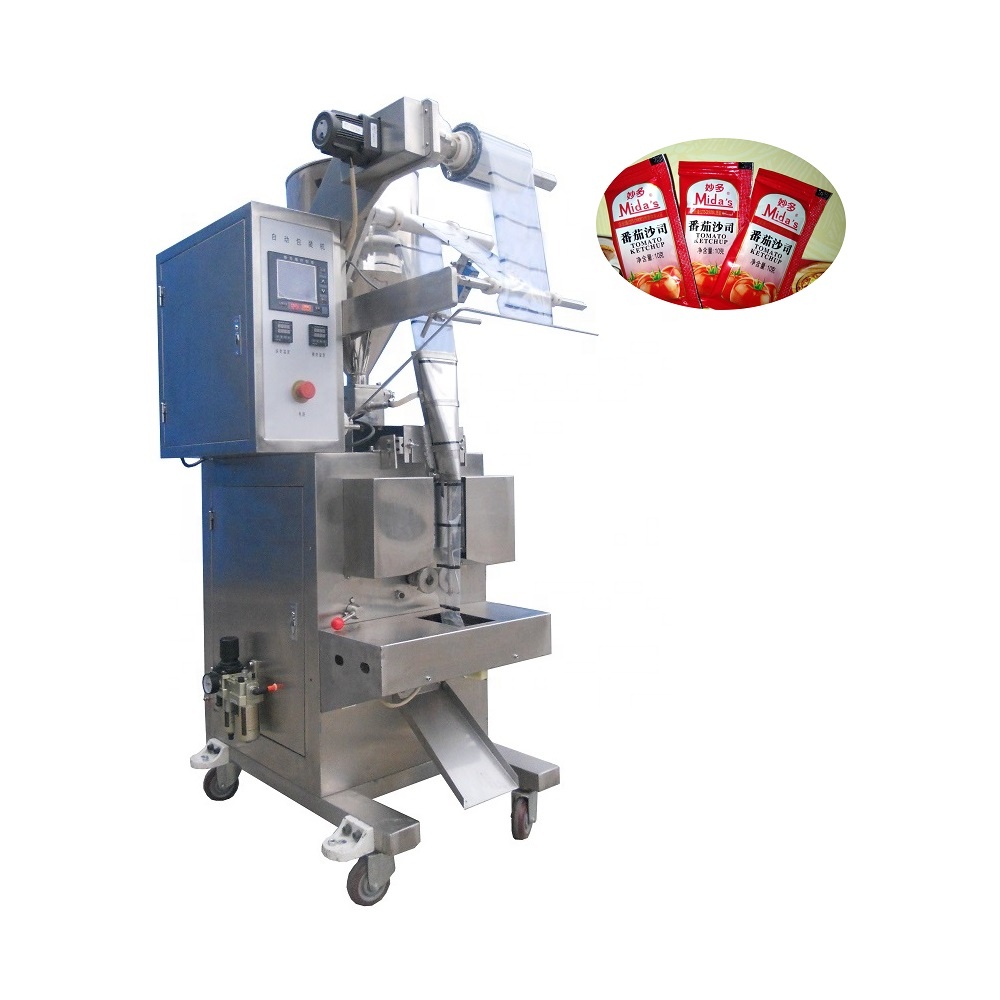

GT-320L Automatic paste sachet filling packing machine for honey shampoo ketchup cream sauce peanut butter

Type: Other, Packing Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, powder
Packaging Type: Bags, Film, Foil, pouches
Packaging Material: Plastic, Paper, Metal
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: AC220/380V
Power: 2.15KW
Weight: 480kg
Dimension(L*W*H): 900*1100*2380mm
packing speed: 30-60 bags/min
bag length: 50- 300 mm
bag width: 70- 190 mm
film width: 10- 380 mm
filling volume: 50-500ml
Total power: 2.15 kw
air source: 0.65 Mpa
air consumption: 1 m3/min
Availability:
Quantity:

GT-320L Automatic paste sachet filling packing machine for honey shampoo ketchup cream sauce peanut butter


What are the details of our JOYGOAL Automatic semi-liquid packing machine?

1)This machine is high precision and most advanced liquid packing machine in China, which is three sides sealing, intermittent, and vertical.

2)This machine is widely used for various kinds of liquid packagings, such as milk, soybean milk, fruit juice, beverage, ice drink, soy sauce, vinegar and wine, and so on.

3)This machine uses single lay film PE as packaging materials.

4)It can automatically be sterilized by ultraviolet radiation, bag molding, print the code, precisely fill, seal and cut at one time.

5)This series has been long-tested and its performance enjoys a very high reputation from our clients that this series is easy to operate and run smoothly with a low failure rate.


What are the technical parameters of our JOYGOAL Automatic semi-liquid packing machine?


Technical Parameters of Automatic vertical sachet packing machine

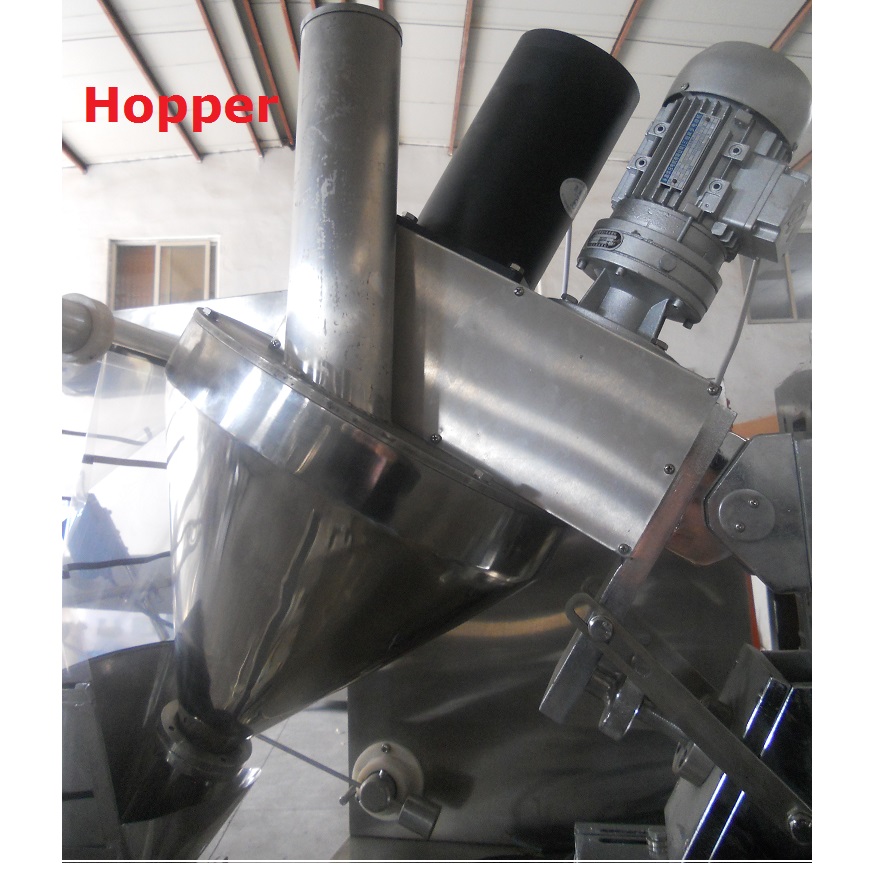

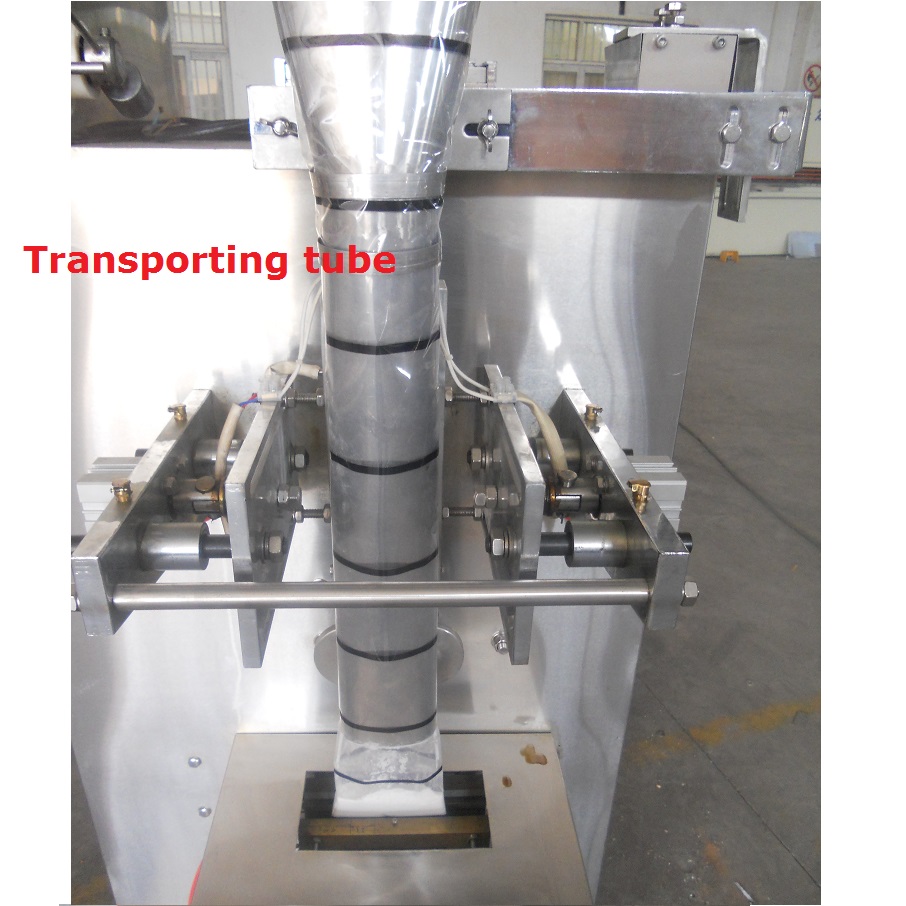

HTB1X8I7dQfb_uJkSnb4q6xCrXXapHTB1imCYlP3z9KJjy0Fmq6xiwXXacHTB1zWOdeMjN8KJjSZFkq6yboXXauHTB1Qu7JmNTI8KJjSspiq6zM4FXarHTB189tim0rJ8KJjSspaq6xuKpXaJHTB1PExhmZrI8KJjy0Fhq6zfnpXa2

1: The parameter above is only for reference, please make the object as the standard.

2: This is our smallest machine, according to your requirements, we can provide special design.


What is the specification of our JOYGOAL Automatic semi-liquid packing machine?

1)According to the client's special requirements, provides the special design;

2)So many optional devices for clients to choose;

3)Automatically finish all the processes;

4)Two types suit for single-layer PE film and laminated films;

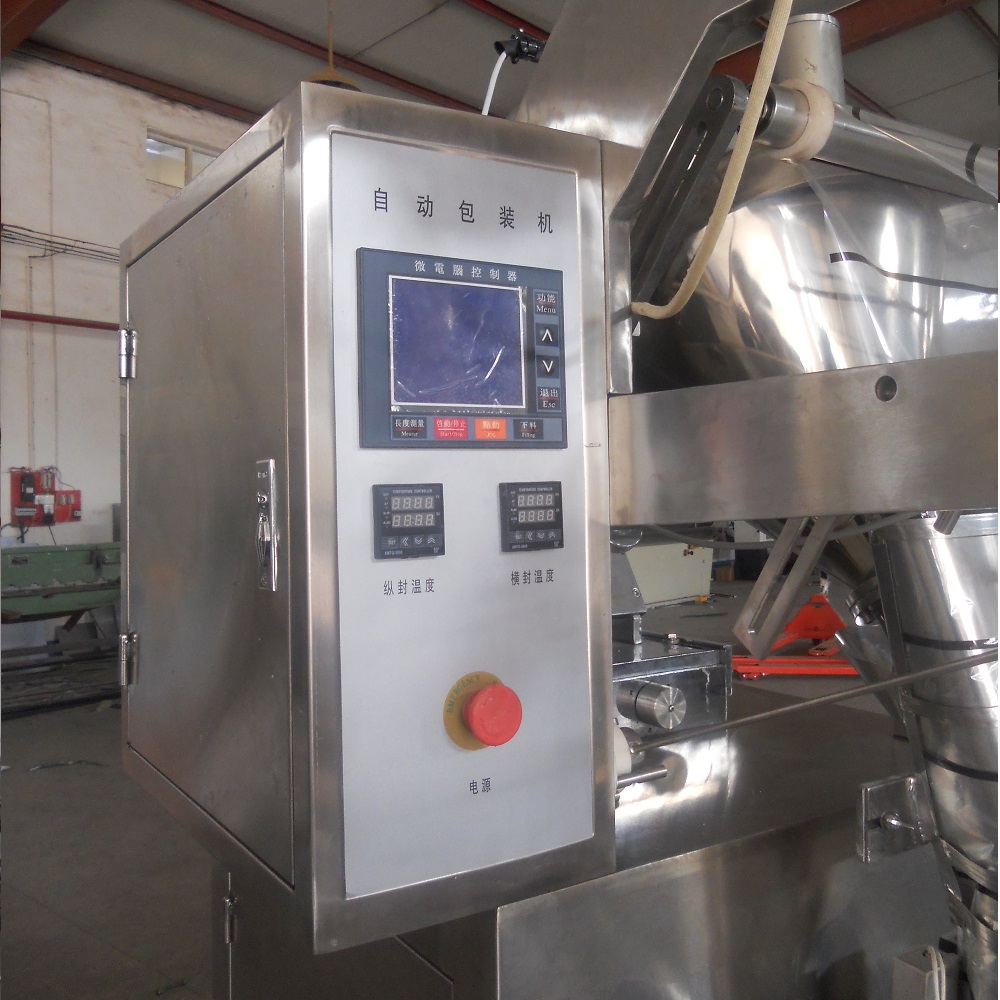

5)PLC control and a pattern calibration photoelectric control device, ensure the pattern will be complete and beautiful.

6)Quantitative piston pump filling ensures packing volume can be adjusted within an accurate range.


What are the advantages of our JOYGOAL Automatic semi-liquid packing machine?

1)We are factory, direct sales with competitive price;

2)More than 8 years of experience for coffee powder fill and seal;

3)Professional designer and worker to serve you;

4)This machine with strict inspection before out of storage;

5)This machine uses a large number of 304 stainless steel;

6)This machine use world-famous electrical and pneumatic components;

7)Within the Warranty period, if under the usage of the instruction sheet, any product broken or damaged, we will offer the repair service for free or replace it for free.


What are the appearances of JOYGOAL Automatic semi-liquid packing machine?

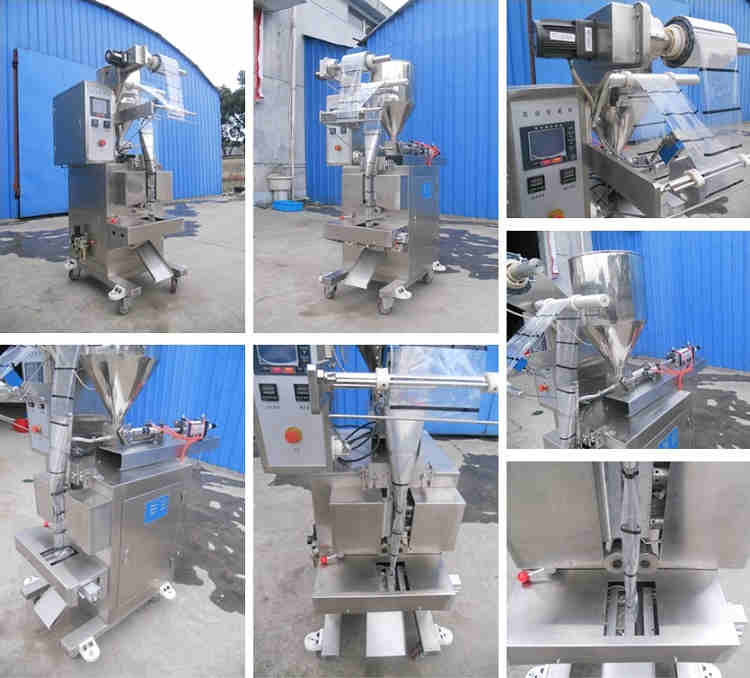

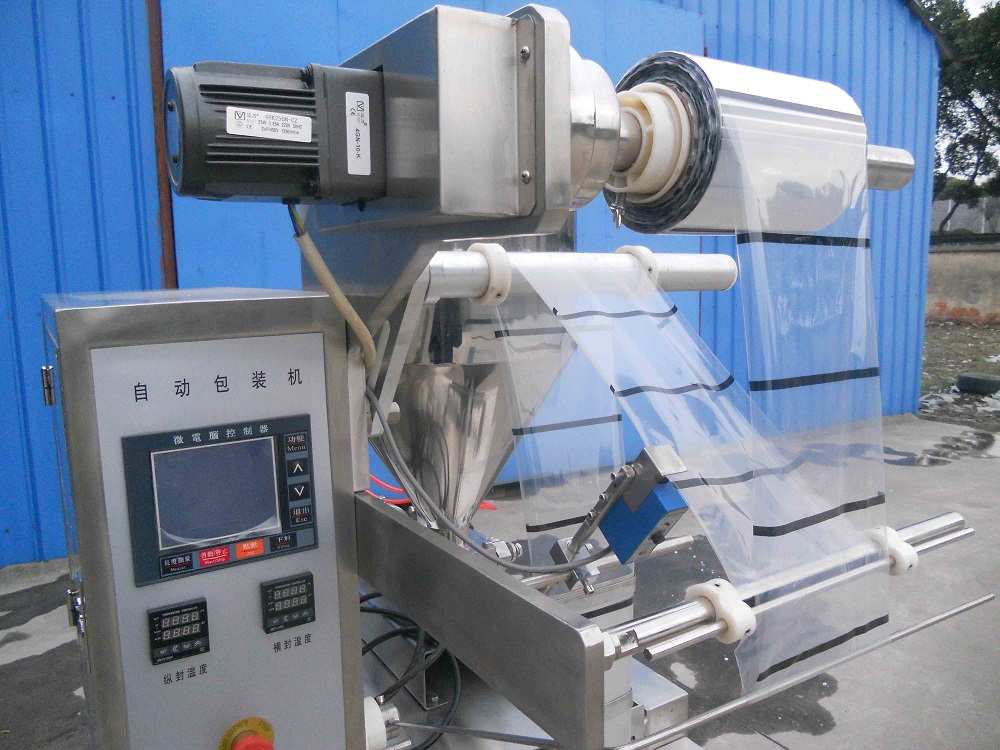

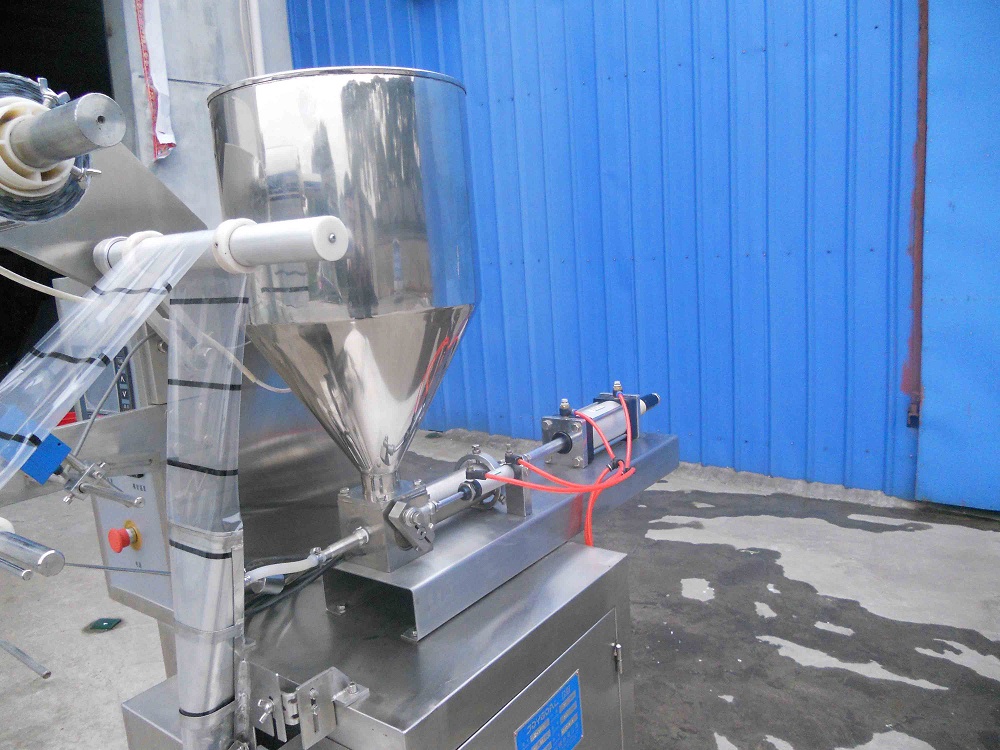

photos of GT-320L Automatic vertical sachet packing machine for semi-liquid

What is the samples of JOYGOAL Automatic semi-liquid packing machine?

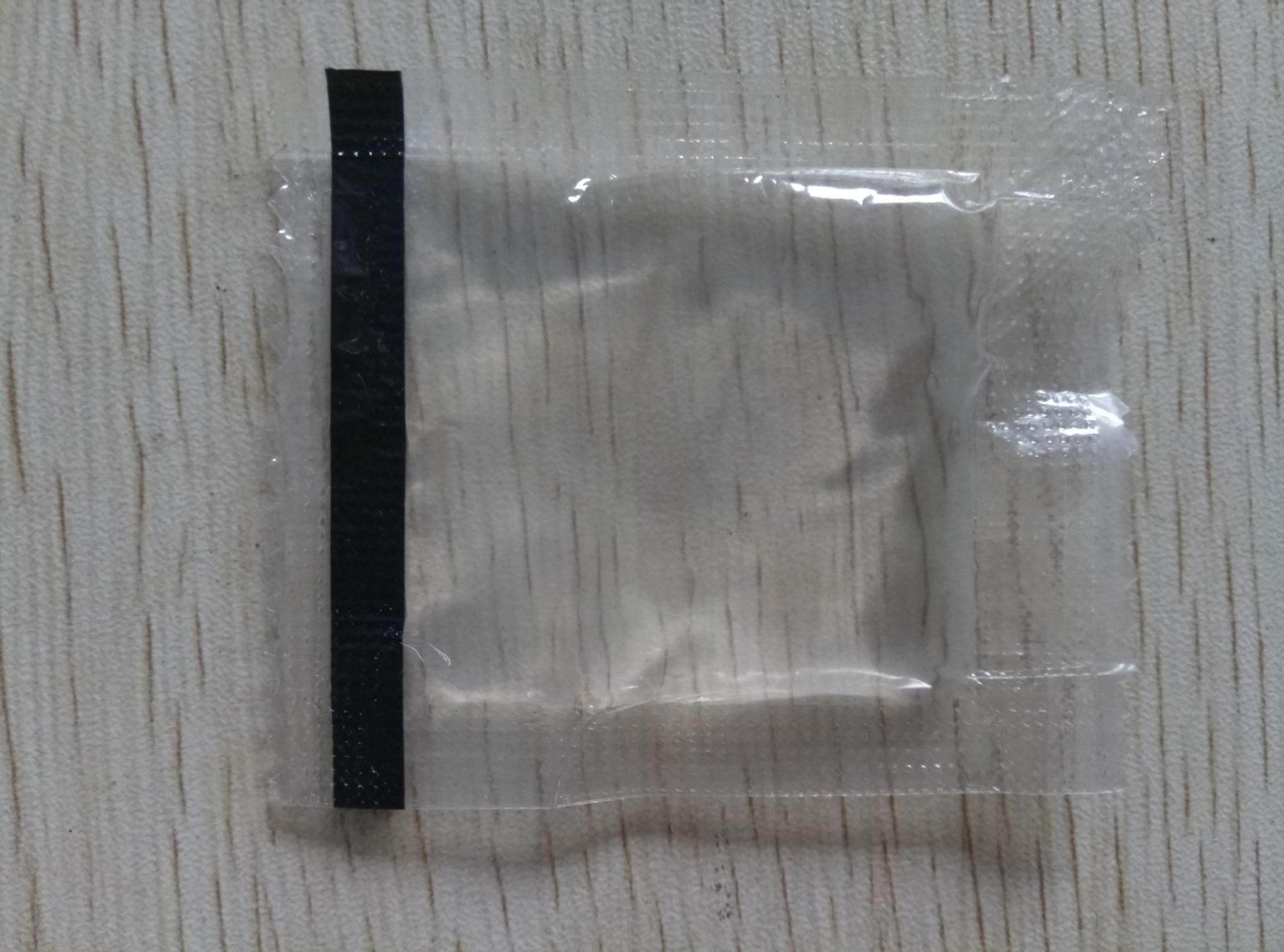

samples of Automatic vertical sachet packing machine for semi-liquid
