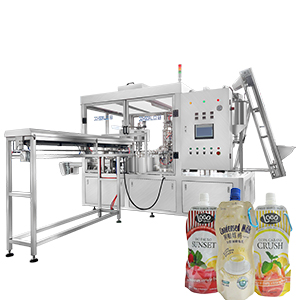

Stand-up pouch disc liquid filling machine Passion fruit fermentation liquid standing pouch filling and capping machine/spout pouch filling machine

#Rotary type liquid filling and capping machine#

1. Performance

The jelly filling and capping machine includes cylinder automatic bag hanging, bagless detection, strong injection filling (nitrogen filling), bag nozzle cleaning, automatic cover-arranging tray, automatic capping, no-cap detection, electromagnetic head + gear capping, and finished product discharge.

2. Processing and material selection requirements:

(1) Power part: worm gear reducer, frequency conversion speed regulation;

(2) Step box: precision cam indexer

(3) Rotary turntable: aluminum alloy, covered with stainless sheet metal;

(4) Automatic bagging: cylinder type automatic bagging structure; using high-quality air cylinders, the bagging will not hurt the bag;

(5) Inkjet: The interface of the inkjet printer is reserved, and the user can configure the inkjet printer;

(6) Bagless inspection: fiber inspection, no bag and no filling;

(7) Filling part:

a) One strong injection filling, the capacity of the material pump can be adjusted;

b) Fill with nitrogen after filling (user-supplied nitrogen source, optional);

c) Filling measurement accuracy ±1%;

d) Anti-drip, suitable for soy milk filling nozzle;

e) Front and rear valve cylinders, photoelectric detection without bags and no filling;

f) Horizontal stainless steel 304# barrel;

g) Equipped with automatic control feeding system;

h) The CIP cleaning interface is not configured;

(8) Nozzle cleaning: jet cleaning;

(9) Automatic cover arrangement by the cover plate: electromagnetic vibration is used to arrange the covers from the track in sequence;

(10) Automatic capping: mechanical capping head, hang the cap on the mouth of the bag when the turntable turns over;

(11) Detection without cover: fiber inspection, stop alarm for cover without cover and defective cover; manual cover;

(12) Automatic capping:

a) Use the motor gear to screw the cap, use the strong magnetic capping head, and the torque can be adjusted visually;

b) Automatically detect the lack of cover, and the vibration plate will stop when the cover is missing;

(13) Finished product discharge: the finished product of the mechanical device is discharged; rack material: the main body of the rack is welded with stainless steel square tube, the outer cover is dustproof, and all other materials are made of 304# stainless steel;

3. Appearance: The filling barrel is separated from the main part; the main part is covered with 6mm thick plexiglass; the control cabinet and the filling part are designed separately, making cleaning more convenient. 7-inch touch screen control, cantilever structure
